Osnovne karakteristike

Procesorsko ležište (socket) - AMD AM5

Čipset - AMD X870E

Tip memorije - DDR5

Memorijski slotovi - 2x DDR5

Podržane memorije - Podržava DDR5 memorije do 9.600+MT/s (O.C.)

Maksimalna ukupna memorija - 128GB

Ostale osobine - Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Dual Channel, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology

PCI Express x16 slot - 2x PCI Express 5.0 (x16 ili x8/x8 ili x8/x4/x4 modovi)

PCI Express x4 slot - 1x PCI Express 4.0

PCI Express x1 slot - 1x PCI Express 3.0

PCI slot - 4

SATA priključci (ukupno) - 4

SATA priključci - SATA III 6Gbps

Broj M.2 slotova - 5

Podržani M.2 formati - 3x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod), 2x 2230 / 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod)

RAID - RAID 0, RAID 1, RAID 10, RAID 5

Žična mreža (LAN) - 1x Realtek 5Gb Ethernet

Model - Realtek

Wi-Fi - Da

Wi-Fi standard - 2.4/5/6GHz frequency band, IEEE 802.11be, 2x2 Wi-Fi 7 (802.11be)

Bluetooth - Da

Bluetooth verzija - 5.4

Broj kanala - 7.1

Model - Realtek ALC4080 Codec

Napomena - Premium audio capacitors, Audio Cover, SupremeFX Shielding, Savitech SV3H712 AMP, Podrška za S/PDIF output, Gold-plated jacks

DisplayPort priključci - Da preko USB-C

PS/2 - 1 (tastatura ili miš)

Ukupno USB priključaka - 10

Ukupno USB-C priključaka - 3

USB-A priključci - 2x USB 5Gbps (3.2 Gen 1), 5x USB 10Gbps (3.2 Gen 2)

USB-C priključci - 1x USB 10Gbps (3.2 Gen 2), 2x USB 40Gbps (USB 4)

RJ-45 (LAN) - 1

Audio - 1x S/PDIF optički, 2x Gold-plated audio jacks

Ostali priključci - BIOS Flashback taster, 1x Clear CMOS dugme, 1 x Wi-Fi Module, 1x Realtek 5Gb Ethernet port

Naponski priključci - 1 x 24 pin Main Power connector, 2x 8 pin ATX 12V Power Connector, 1x 8-pin ATX PCIe power connector

USB-A - 2 x podrška za 2 USB 2.0 porta, 2 x podrška za 2 USB 5Gbps porta

USB-C - 2 x podrška za 2 USB 20Gbps porta

Audio - 1x Front panel audio

Ostali priključci - 4 x SATA 6Gb/s, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Thermal Sensor header, 2 x 4-pin Chassis Fan headers, 1 x Start button, 1 x FlexKey button, ReTry taster, 1 x W_PUMP+ header, 3 x M.2 slot (Key M), 1x Alteration PCIe Mode Switch, 3x Addressable Gen 2 headers, 1x LN2 Mode jumper, Safe Boot taster, Slow mode prekidač, BIOS prekidač, 1 x PAUSE Switch, 2 x RSVD Switch, 1 x 80 Light Bar jumper, 2 x BCLK button, 1 x 4-pin Extra Flow Fan header, 2 x 4-pin Full Speed Fan headers, 12x ProbeIt Measurement Points, 1 x RSVD4 header

Napomena - Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Podržane tehnologije - AURA Creator, DIGI+VRM, SafeSlot, Q-DIMM, VRM heatsink design, M.2 Q-Latch, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Antenna, Aura Sync RGB, UEFI Bios, ProCool II, Fan Xpert 4, GameFirst, Q-Connector, MyHotkey, Q-Dashboard, Extreme Engine Digi+, ROG CPU-Z, AI Cooling II, CPU Socket lever protector, AI Overclocking, AI Advisor, PCIe Slot Q-Release Slim, M.2 Q-Release, Q-Code, M.2 Q-Slide, FlexKey, Metal backplate, Dolby Atmos, USB Wattage Watcher, TurboV Core, Extreme OC Kit

Format - ATX

Dimenzije - 305mm x 244mm

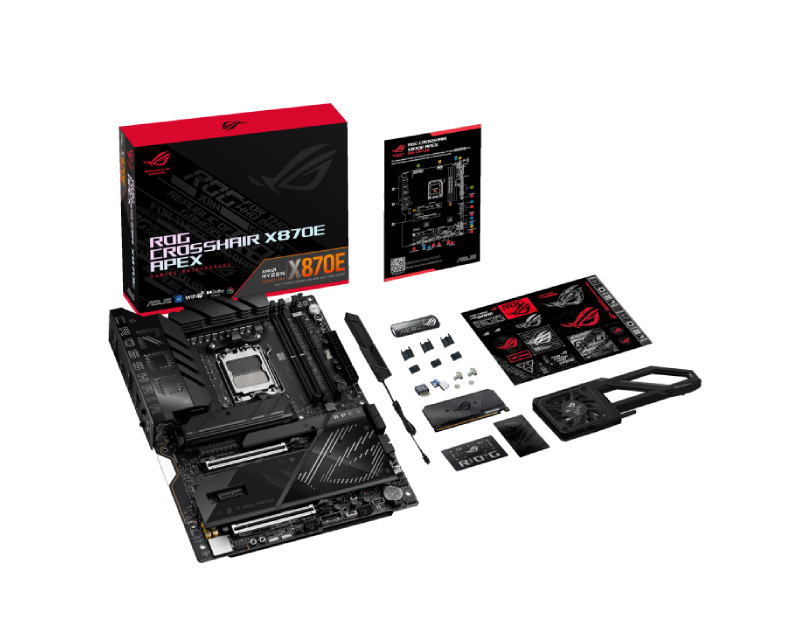

Pakovanje - 1 x ASUS WiFi Q-Antenna, 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad for ROG DIMM.2, 2 x M.2 screw package for ROG DIMM.2, 1 x ROG Memory Fan Kit, 1 x Q-connector, 3 x M.2 Q-Slide package, 3 x M.2 rubber package, 1 x ROG stickers, 1 x ROG Bottle Opener, 1 x USB drive with utilities and drivers

Reklamacioni period - 36 meseci
