Osnovne karakteristike

Procesorsko ležište (socket) - AMD AM5

Čipset - AMD X870E

Tip memorije - DDR5

Memorijski slotovi - 4

Podržane memorije - 8.000MT/S (O.C.)

Maksimalna ukupna memorija - 256GB

Ostale osobine - Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Dual Channel, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP)

PCI Express x16 slot - 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x8/x4 mode)

PCI Express x1 slot - 1x PCI Express 3.0

PCI slot - 3

SATA priključci (ukupno) - 4

SATA priključci - 4x SATA 6GB/s

Broj M.2 slotova - 4

Podržani M.2 formati - 1x 2280 (podrška za PCIe 5.0 x4 mod), 1x 2280 (podrška za PCIe 4.0 x4 mod), 1x 2242 / 2260 / 2280 / 22110 (podrška za PCIe 5.0 x4 mod)

RAID - RAID 0, RAID 1, RAID 10, RAID 5

Žična mreža (LAN) - 10/100/1000/2500 Mbps (2.5GbE)

Model - Realtek

Wi-Fi - Da

Wi-Fi standard - 2x2 Wi-Fi 7 (802.11be)

Bluetooth - Da

Bluetooth verzija - 5.4

Broj kanala - 7.1

Model - Realtek ALC1220P

Napomena - Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, Audio Cover, Unique de-pop circuit

Broj HDMI priključaka - 1

HDMI priključci - 1x HDMI

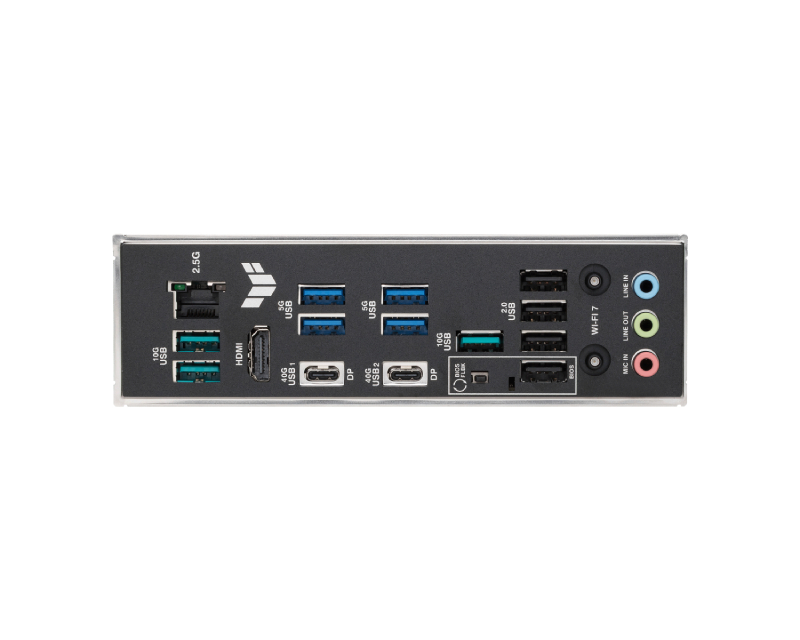

Ukupno USB priključaka - 13

Ukupno USB-C priključaka - 2

USB-A priključci - 4x USB 2.0, 4x USB 5Gbps (3.2 Gen 1), 3x USB 10Gbps (3.2 Gen 2)

USB-C priključci - 2x USB 40Gbps (USB 4)

RJ-45 (LAN) - 1

Audio - 3x 3.5mm

Ostali priključci - BIOS Flashback taster, 1x Wi-Fi Module

Naponski priključci - 1 x 24 pin Main Power connector, 2x 8-pin +12V CPU Power connectors

USB-A - 2 x podrška za 4 USB 2.0 porta, 1 x podrška za 2 USB 5Gbps porta

USB-C - 1 x podrška za 1 USB 20Gbps port

Audio - 1x Front panel audio

Ostali priključci - 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x Thermal Sensor header, 4 x 4-pin Chassis Fan headers, 1 x Chassis Intrusion header

Napomena - Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Podržane tehnologije - AURA Creator, AURA Sync, DIGI+VRM, Overvoltage Protection, SafeSlot, Q-DIMM, Q-Slot, ESD Guards, VRM heatsink design, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, ProCool, Stainless-Steel Back I/O, BIOS FlashBack button, BIOS FlashBack LED, Q-Antenna, Fan Xpert 4, TUF Gaming CPU-Z, DTS Audio Processing, TUF LANGuard, M.2 Q-Latch, M.2 heatsink, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Addressable Gen 2 headers, AI Advisor, Q-Dashboard, TurboV Core, Pre-mounted I/O shield, GlideX, Armoury Crate, ASUS MyHotkey, AI Overclocking, PCIe Slot Q-Release Slim, USB Wattage Watcher, DriverHub

Format - ATX

Dimenzije - 305mm x 244mm

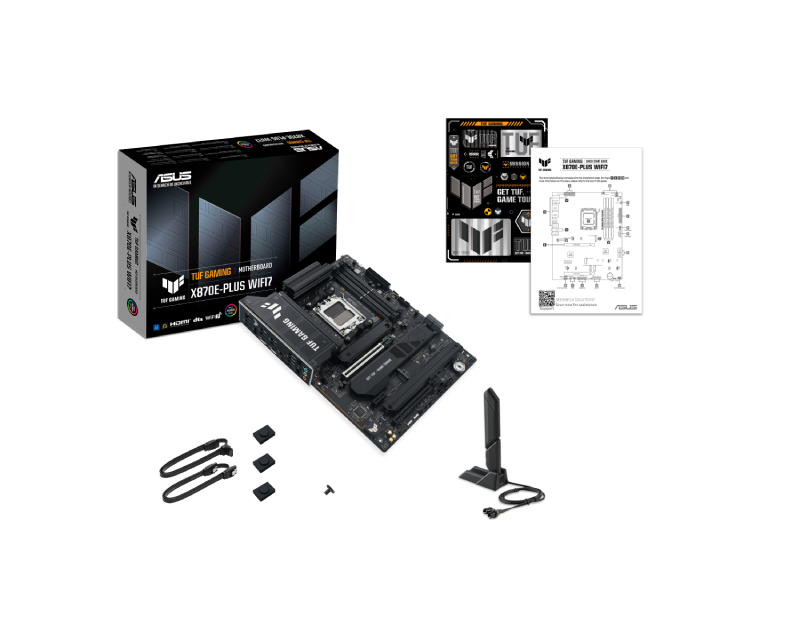

Pakovanje - Šrafovi, 2 x SATA 6Gb/s kabl, 1 x ASUS Wi-Fi antena, 2 x M.2 gumice, 1 x Screw package for M.2 SSD, 1 x Quick Start Guide

Reklamacioni period - 36 meseci
