Osnovne karakteristike

Procesorsko ležište (socket) - AMD AM5

Čipset - AMD B850

Grafika - Upotreba grafike iz procesora

Tip memorije - DDR5

Memorijski slotovi - 4

Podržane memorije - 6.000MT/s (O.C.), 7.200MT/s (O.C.), 6.800MT/s (O.C.), 6.600MT/s (O.C.), 6.400MT/s (O.C.), 6.200MT/s (O.C.), 5.200MT/s, 4.800MT/s, 7.600MT/s (O.C.), 5.600MT/s (O.C.), 8.000MT/S (O.C.), 8.200MT/s (O.C.), 5.800MT/s (O.C.), 4.400MT/s, 7.000MT/s (O.C.), 7.400MT/s (O.C.), 7.800MT/s (O.C.), 7.950MT/s (O.C), 7.900MT/s (O.C)

Maksimalna ukupna memorija - 256GB

Ostale osobine - Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO)

PCI Express x16 slot - 3x PCI Express 3.0 (x1 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x8/x4 modes)

SATA priključci (ukupno) - 4

SATA priključci - SATA III 6Gbps

Broj M.2 slotova - 3

Podržani M.2 formati - 1x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0 x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0/5.0 x4/x2 mod)

RAID - RAID 0, RAID 1, RAID 10

Žična mreža (LAN) - 1000Base-T (Gigabit)

Model - Realtek

Wi-Fi - Da

Wi-Fi standard - IEEE 802.11ax, Realtek Wi-Fi 6 RTL8851BE

Bluetooth - Da

Bluetooth verzija - 5.3

Broj kanala - 2/4/5.1/7.1

Model - Realtek

Napomena - High Definition, Audio Noise Guard, High-End Audio Capacitor

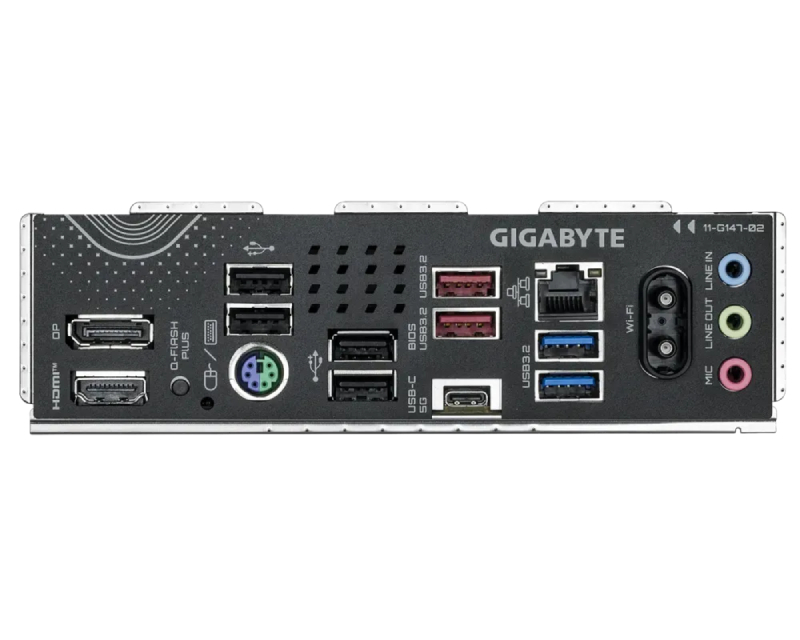

Broj DisplayPort priključaka - 1

DisplayPort priključci - 1x DisplayPort

Broj HDMI priključaka - 1

HDMI priključci - 1x HDMI

PS/2 - 1 (tastatura ili miš)

Ukupno USB priključaka - 9

Ukupno USB-C priključaka - 1

USB-A priključci - 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0, 2x USB 5Gbps (3.2 Gen 1)

USB-C priključci - 1x USB 5Gbps (3.2 Gen 1)

RJ-45 (LAN) - 1

Audio - 3x 3.5mm

Ostali priključci - 1 x Q-Flash Plus button, 2x SMA antenna connectors (2T2R)

Naponski priključci - 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector

USB-A - 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port

USB-C - 1 x podrška za 1 USB 5Gbps port

Audio - 1x Front panel audio

Ostali priključci - 1 x Clear CMOS jumper, 4 x SATA 6Gb/s, 1 x RGB LED strip header, 1 x CPU fan header, 1 x front panel header, 1 x system fan/water cooling pump headers, 1 x reset jumper, 3 x system fan headers, 3 x M.2 Socket 3 connectors, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Podržane tehnologije - Q-Flash Plus, Norton Internet Security (OEM verzija), Voltage detection, Detekcija Temperature, Fan speed detection, Fan fail warning, Fan speed control, iTE I/O Controller Chip, AI Overclocking, GIGABYTE Control Center, Smart Fan 6, Water cooling flow rate detection, LAN bandwidth management software, Smart Backup, RGB Fusion, HWiNFO, D5 Bionic Corsa, HyperTune BIOS, X3D Turbo Mode, VRM Thermal Armor Advanced, WIFI EZ-Plug, UC BIOS, PCIe EZ-Latch, Ultra Durable, AIO Fan Control

Format - ATX

Dimenzije - 305mm x 244mm

Reklamacioni period - 36 meseci
