Osnovne karakteristike

Procesorsko ležište (socket) - AMD AM5

Čipset - AMD B850

Grafika - Upotreba grafike iz procesora

Tip memorije - DDR5

Memorijski slotovi - 4

Podržane memorije - Podržava DDR5 memorije do 8.200MT/s (O.C.)

Maksimalna ukupna memorija - 256GB

Ostale osobine - Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO)

PCI Express x16 slot - 1x PCI Express 4.0 (x4 mode), 1x PCI Express 5.0 (x16 mode) / 4.0 (x8/x4 modes)

SATA priključci (ukupno) - 2

SATA priključci - SATA III 6Gbps

Broj M.2 slotova - 4

Podržani M.2 formati - 1x 2280 / 2580 / 22110 / 25110 (podrška za PCIe 4.0/5.0 x4/x2 mod), 2x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod), 1x 2280 / 22110 (podrška za PCIe 4.0/5.0 x4/x2 mod)

RAID - RAID 0, RAID 1, RAID 10, RAID 5

Žična mreža (LAN) - 5GBase-T (Gigabit)

Model - Realtek

Wi-Fi - Da

Wi-Fi standard - IEEE 802.11ax, Realtek® Wi-Fi 7 RTL8922AE

Bluetooth - Da

Bluetooth verzija - 5.4

Broj kanala - 2/4/5.1/7.1

Model - Realtek ALC1220 Audio Codec

Napomena - High Definition, Podrška za S/PDIF izlaz, High-End Audio Capacitor

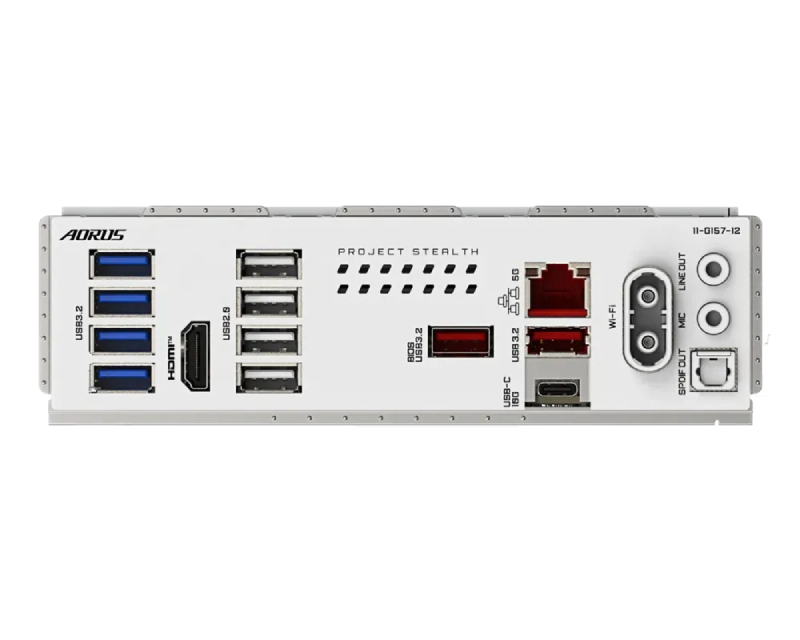

Broj HDMI priključaka - 1

HDMI priključci - 1x HDMI

Ukupno USB priključaka - 11

Ukupno USB-C priključaka - 1

USB-A priključci - 2x USB 10Gbps (3.2 Gen 2), 4x USB 2.0, 4x USB 5Gbps (3.2 Gen 1)

USB-C priključci - 1x USB 10Gbps (3.2 Gen 2)

RJ-45 (LAN) - 1

Audio - 2x 3.5mm

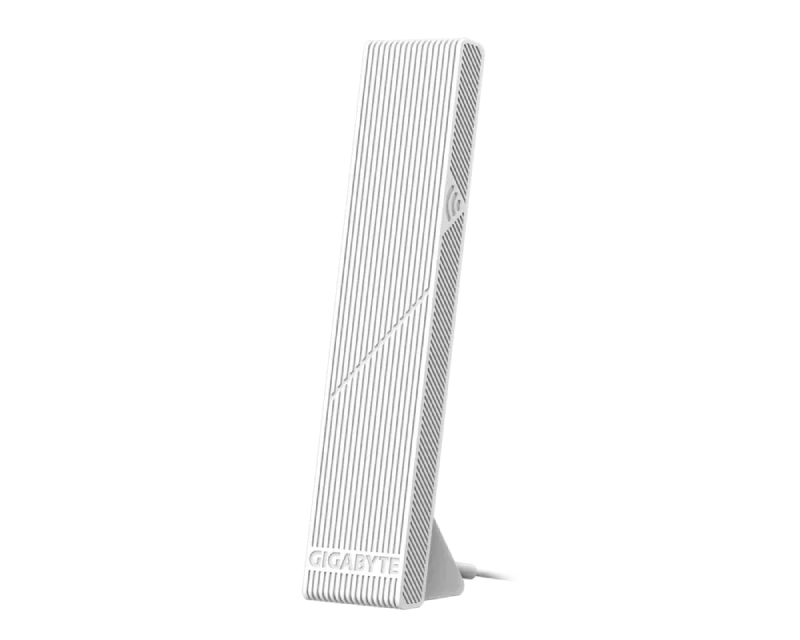

Ostali priključci - 1 x optical S/PDIF, 2x SMA antenna connectors (2T2R)

Naponski priključci - 1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector

USB-A - 2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port

USB-C - 1 x podrška za 1 USB 20Gbps port

Audio - 1x Front panel audio

Ostali priključci - 1 x Clear CMOS jumper, 1 x RGB LED strip header, 1 x CPU fan header, 2 x SATA 6Gb/s, 1 x front panel header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Power button, 1 x reset button, 1x CPU fan/water cooling pump header, 3x addressable RGB Gen2 LED strip headers, 2 x system fan/water cooling pump headers, 2 x temperature sensor headers, 1 x noise detection header, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 4 x system fan headers, 4 x M.2 Socket 3 connectors

Podržane tehnologije - Q-Flash Plus, Norton Internet Security (OEM verzija), Voltage detection, Detekcija Temperature, Fan speed detection, Fan fail warning, Fan speed control, iTE I/O Controller Chip, AI Overclocking, GIGABYTE Control Center, Smart Fan 6, Water cooling flow rate detection, Smart Backup, RGB Fusion, HWiNFO, D5 Bionic Corsa, Aorus Ai Snatch, HyperTune BIOS, X3D Turbo Mode, Zenith Memory Performance, VRM Thermal Armor Advanced, WIFI EZ-Plug, M.2 Thermal Guard, UC BIOS, EZ-Debug Zone, PCIe EZ-Latch, Ultra Durable, AIO Fan Control, M.2 EZ-Flex Design, DriverBIOS

Format - ATX

Dimenzije - 305mm x 244mm

Reklamacioni period - 36 meseci
