Osnovne karakteristike

Procesorsko ležište (socket) - AMD AM5

Čipset - AMD X870E

Grafika - Upotreba grafike iz procesora

Tip memorije - DDR5

Memorijski slotovi - 4

Podržane memorije - Podržava DDR5 memorije do 9.600+MT/s (O.C.)

Maksimalna ukupna memorija - 256GB

Ostale osobine - Podrška za Unbuffered ECC memoriju, Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM Technology, DIMM Fit, DIMM Fit Pro

PCI Express x16 slot - 1x PCI Express 4.0 (x4 mode), 1x PCI Express 4.0 (x8/x4 mode) / 5.0 (x16 mode)

PCI slot - 2

SATA priključci (ukupno) - 4

SATA priključci - SATA III 6Gbps

Broj M.2 slotova - 5

Podržani M.2 formati - 3x 2280 (podrška za PCIe 4.0 x4 mod), 2x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod i PCIe 4.0 x4 mod)

RAID - RAID 0, RAID 1, RAID 10, RAID 5

Žična mreža (LAN) - 5GBase-T (Gigabit)

Model - Realtek

Wi-Fi - Da

Wi-Fi standard - MediaTek Wi-Fi 7 MT7927

Bluetooth - Da

Broj kanala - 8 (7.1)

Model - Realtek ALC4080 Codec, ROG SupremeFX

Napomena - Audio Shielding, Jack-detection, Multi-streaming, Premium audio capacitors, Audio Cover, Podrška za S/PDIF izlaz, Savitech SV3H712 AMP, Supports up to 32-Bit/384 kHz playback, Gold-plated jacks, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Impedance sense for front and rear headphone outputs, Front Panel MIC Jack-retasking, Podrška za LHDC high-definition bluetooth audio codec, transmission with up to 400 kbps bitrate and 24-bit/192 kHz

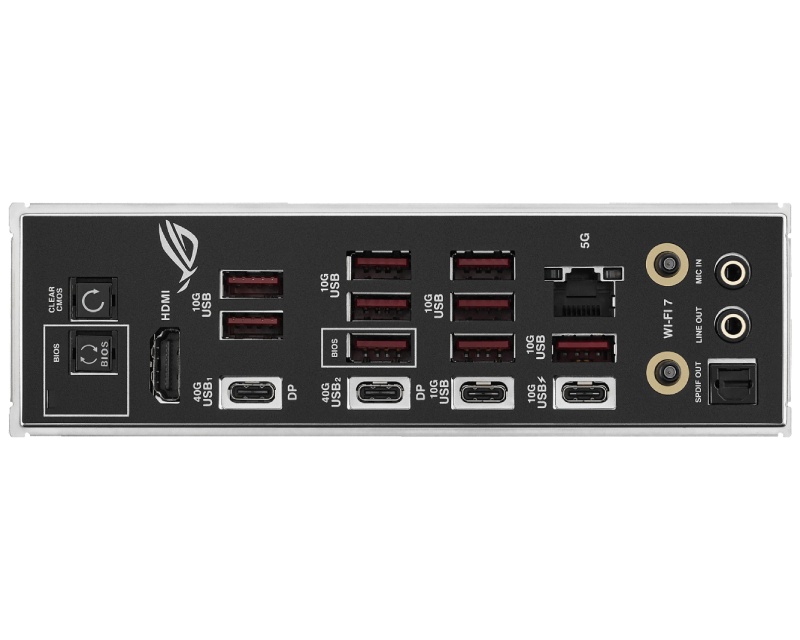

DisplayPort priključci - Da preko USB-C

Broj HDMI priključaka - 1

HDMI priključci - 1x HDMI 2.1

Ukupno USB priključaka - 13

Ukupno USB-C priključaka - 4

USB-A priključci - 9x USB 10Gbps (3.2 Gen 2)

USB-C priključci - 2x USB 40Gbps (USB 4), 2x USB 10Gbps (3.2 Gen 2)

RJ-45 (LAN) - 1

Audio - 2x 3.5mm, 1x S/PDIF optički

Ostali priključci - BIOS Flashback taster, 1x Clear CMOS dugme, 1x Wi-Fi Module

Naponski priključci - 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector

USB-A - 2 x podrška za 4 USB 5Gbps porta, 3 x podrška za 6 USB 2.0 porta

USB-C - 2 x podrška za 1 USB 20Gbps port

Audio - 1x Front panel header

Ostali priključci - 4 x SATA 6Gb/s ports, 1 x Thermal Sensor header, 1 x Chassis Intrusion header, 1 x CPU Over Voltage jumper, 1 x Start button, 1 x AIO Q-Connector, 5 x M.2 slots (Key M), 1 x 10-1 pin Front Panel System header, 1 x Alteration PCIe mode switch, 1 x 4-pin CPU Fan header(s), 1 x 4-pin CPU OPT Fan header(s), 1 x 4-pin AIO Pump header(s), 5 x 4-pin Chassis Fan header(s), 3 x Addressable RGB Gen 2 header(s)

Napomena - Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Podržane tehnologije - AURA Sync, LANGuard, UEFI Bios, Armoury Crate, Extreme Engine Digi+, FlexKey, Asynchronous Clock, ASUS Thermal Solution, ASUS EZ DIY, AI Cache Boost, AMD RAIDXpert2 Technology, ASUS Q-Design, ROG Exclusive Software, ASUS Exclusive Software, ASUS DriverHub, Integrated WiFi Driver Support, AI Overclocking Guide

Format - ATX

Dimenzije - 305mm x 244mm

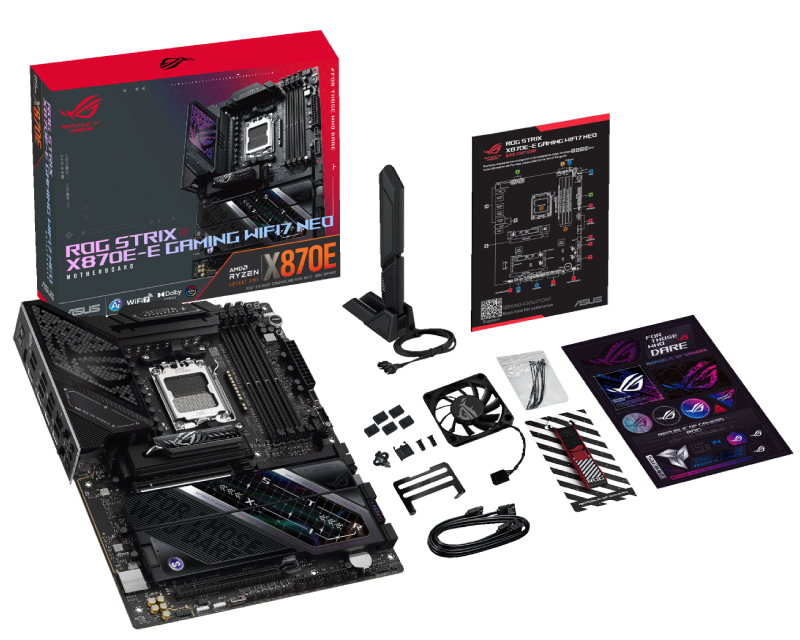

Pakovanje - 2 x SATA 6Gb/s kabl, 1 x Quick Start Guide, 1 x ASUS WiFi Q-Antenna, 1 x DDR5 fan holder, 1 x ROG assistant fan (60mm), 1 x Screw package for cooling kit, 1 x M.2 Q-Latch package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 1 x Cable ties package, 1 x ROG Strix thank you card, 5 x M.2 rubber package(s)

Reklamacioni period - 36 meseci
